ASTM D3985 Standard Test Method for Oxygen Gas Transmission Rate through Yas Film and Sheeting using a Coulometric Sensor. Txoj kev sim no suav nrog cov txheej txheem rau kev txiav txim siab ntawm tus nqi tsis tu ncua ntawm kev xa cov pa oxygen los ntawm cov yas hauv daim ntawv ntawm zaj duab xis, ntawv, laminates, coextrusion, los yog cov ntaub ntawv yas-coated los yog ntaub.
Test Principple
Cov qauv tsim thiab kev ua haujlwm ntawm peb lub cuab yeej yog raws li ASTM D 3985 tus qauv.

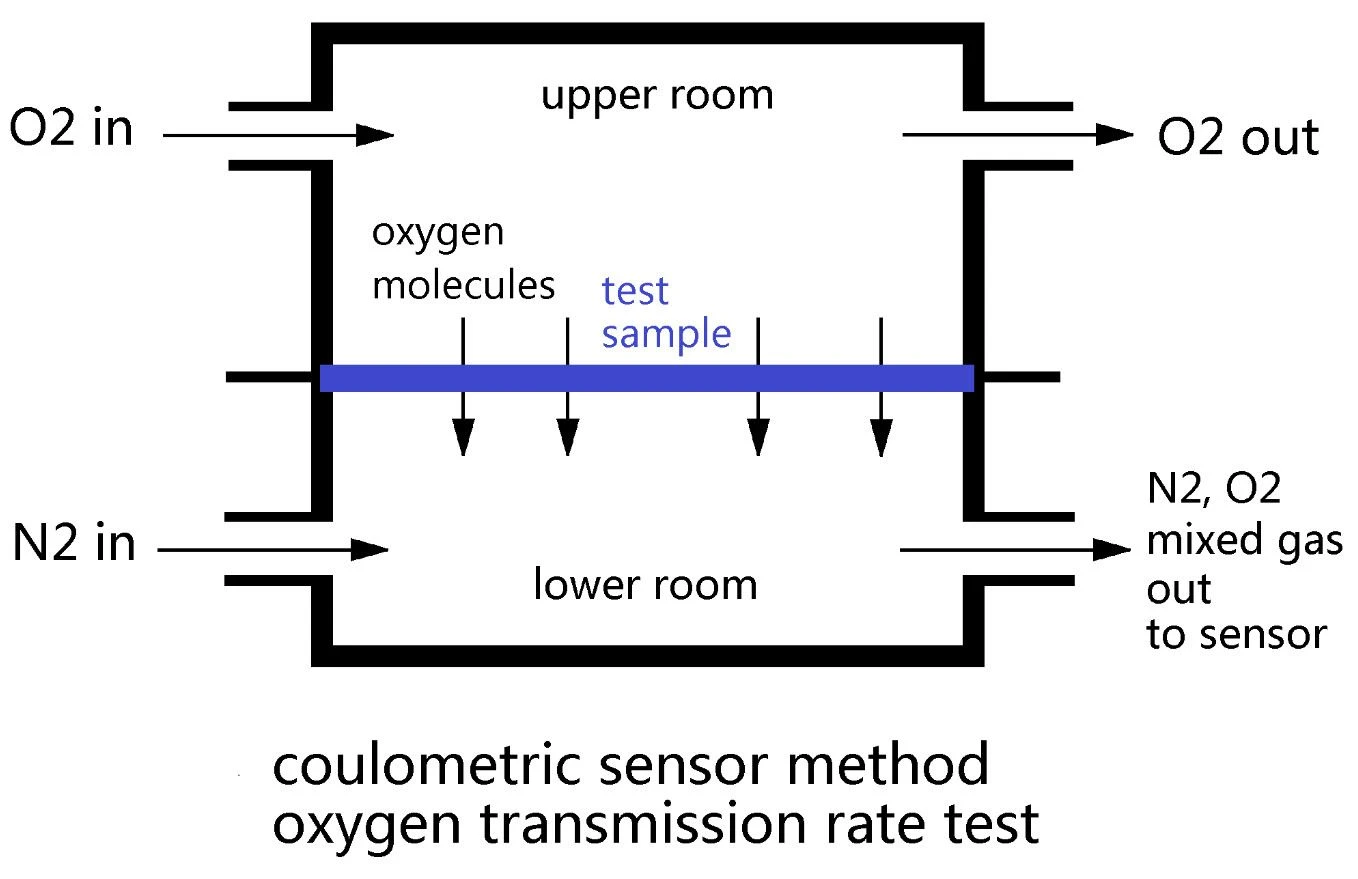

Cov roj nitrogen qhuav yog rhais los ntawm lub chamber, qhov twg cov yeeb yaj kiab sim ua raws li daim nyias nyias cais cov kwj dej ntawm cov kwj dej ntawm sab nraud. Qhov sib txawv ntawm ib nrab ua rau lub zog tsav rau oxygen molecules kom diffuse los ntawm zaj duab xis mus rau sab qis. Cov yeeb yaj kiab thaiv kev txiav txim siab tus nqi ntawm oxygen permeation, uas yog ntsuas tsis tu ncua los ntawm coulometric sensor nyob rau hauv cov kwj tawm ntawm sab nitrogen. Qhov kev sim ua tiav thaum qhov sib npaug, lossis lub xeev khov kho, ua tiav; uas yog, thaum lub sensor pom ib qho tsis tu ncua ntawm cov pa oxygen hauv cov cab cab nitrogen. Tus nqi ntawm oxygen permeating los ntawm cov qauv tsis hloov. Tus nqi no yog tus qauv OTR thiab tau sau tseg rau hauv units ntawm cc/100 in2/24 hr lossis cc/m2/24 hr ntawm 73 ° F (23 ° C), 0% RH.
Specification
Yam khoom | Technical parameters |
Txuj
| GB / T19789-2005, YBB00082003-2015, ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, ISO 15105-2, DIN 53380-3, JIS K-7126- |
Kev xeem ntau yam | 0.02-16500 cm3/m2· 24h (Xov Xwm) Nrog lub npog ntsej muag tuaj yeem yog 260000 cm3/m2·24h |
Ntsuas qhov tseeb | 0.001cm ib3/m2·24h |
Qhov kub thiab txias | 15~45℃ |
Kub raug | ±0.1℃ |
Humidity ntau | 30 ~ 90% RH, 100% RH |
Humidity raug | ± 1% RH |
Xeem cheeb tsam | 50.24 cm : kuv2(yam tsawg kawg 0.785 cm2yeem) |
Qauv loj | Φ100 hli |
Qauv thickness | ≤ 3mm |
Tus naj npawb ntawm cov qauv | 1 qob |
Carrier Gas siab | ≥0.1MPa |
Carrier gas chaw nres nkoj | Φ3mm Gas yeeb nkab |
Qhov ntsuas loj | 600 × 400 × 330 hli |
Qhov hnyav | 80kg ua |
Hwj chim | 750W |
Fais fab mov | AC 220V, 50Hz |
Nta
Cov ntaub ntawv raug thiab txhim khu kev qha
◆ Nrog Lub Xeev Certificate rau Gradation ntawm cov ntawv pov thawj Reference Materials thiab Daim ntawv tso cai rau Manufacturing Measuring Instruments ntawm lub xeev Reference Materials (GBW(E)130497/8) ntawm Oxygen permeability analyzer tau pom zoo thiab muab los ntawm General Administration ntawm Kev Tswj Xyuas Zoo, Kev Tshuaj Xyuas thiab Quarantine ntawm PRC Txais cov ntaub ntawv pov thawj hauv xeev los ntsuas thiab txheeb xyuas cov cuab yeej, xyuas kom raug, universality thiab txoj cai ntawm cov ntaub ntawv xeem.
Kev ua haujlwm yooj yim
◆ LCD thiab qhov rais ntsuas qhov sib txuas qhia cov ntaub ntawv ntsuas thiab ua haujlwm raws sijhawm; nas ua haujlwm yog yooj yim thiab yooj yim.
◆ Kev tshaj lij software nrog cov interface yooj yim, siv tau yooj yim thiab yooj yim los teeb tsa cov txheej txheem xeem.
◆ Kev ua haujlwm puv puv, txiav txim siab thiab nres tau.
◆ Lub sijhawm tiag tiag curves qhia txog kev sib kis, oxygen concentration, kub thiab av noo, nkhaus tau yooj yim zoomed thiab txav mus. Cov nkhaus nrog zais muaj nuj nqi, txhawb cov lus nug muaj nuj nqi rau cov ntaub ntawv keeb kwm yav dhau.
◆ Daim ntawv qhia kev xeem; tuaj yeem xa tawm raws li PDF.
Advanced technology
◆ Kev tswj qhov kub thiab txias: International advanced electromagnetic technology, kev tswj kev tswj, pib cua sov thiab cua txias; thiab tsis xav tau cov khoom siv sab nraud. Precision: 0.1 ℃.
◆ Kev tswj cov av noo: Dual gas flow method (ntau cov pa qhuav thiab cov pa ntub dej), nrog rau ntau yam, siab precision (1% RH) thiab ntws ruaj khov.
◆ Nqa qhov txiav-ntug ARM tswj qhov system, tuaj yeem khiav ntawm nws tus kheej yam tsis muaj computer.
Kev ua haujlwm siab
◆ Kev ntsuas qhov tseeb txog li 0.001 cm3/（m2· 24h), tuaj yeem kuaj cov ntaub ntawv pov thawj siab, xws li txhuas ntawv ci.
◆ Los ntawm kev ntxiv cov khoom siv kuaj pob, tuaj yeem kuaj cov pa oxygen ntawm ntau lub thawv xws li lub hnab, lub raj mis, tuaj yeem thiab lub tais.
◆ Los ntawm kev ntxiv cov khoom siv hloov pauv, tuaj yeem nthuav dav qhov txwv ntawm qhov ntsuas mus txog 260000 cm3/m2•24h.
Calibration& Ntawv pov thawj
◆ Cov cuab yeej txhawb nqa ob txoj hauv kev siv cov khoom siv thiab cov qauv roj rau daim ntawv pov thawj thiab calibrate; Kev ua haujlwm yog yooj yim, tus neeg siv tsuas yog xav tau siv cov ntaub ntawv pov thawj siv rau kev sim ib txwm, thiab tom qab ntawd nkag mus rau qhov ntsuas ntsuas rau hauv qhov ntsuas ntsuas kom ua tiav calibration.
Txhim khu kev ruaj ntseg thiab yooj yim los tswj
◆ Ntshuam oxygen sensor, nrog cov neeg ua haujlwm siab thiab ua haujlwm zoo, tuaj yeem ua haujlwm tau ntev.
◆ Sensor tshaj qhov pib tiv thaiv.
◆ Muaj nuj nqi modularization, yooj yim los tswj.
